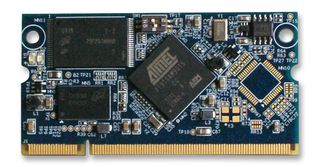

The MBC-SAM9G15 is an ARM embedded core board which integrate the ATMEL ARM926EJ-S-based processor AT91SAM9G15. Based on the ARM926EJ-S processor, the AT91SAM9G15 runs at 400MHz and integrates a rich set of peripherals to support embedded industrial applications that require advanced user interfaces and high speed communication. The ATSAM9G15 has s a graphics LCD controller with 4 layer overlay and 2D acceleration (picture in picture, alpha blending, scaling, rotation, colour conversion), and a 10bit ADC that supports 4/5 wire resistive touch screen panels. Multiple communication interfaces include a soft modem supporting exclusively the Conexant SmartDAA line driver, HS USB host and device and FS USB host with dedicated on chip transceivers, two HS SDCard/SDIO/MMC interfaces, USARTs, SPIs, I2S and TWIs.
- 16KB Data cache, 16KB instruction cache, memory management unit
- 64KB internal ROM embedding bootstrap routine: boot on nandflash, SDCard, data flash
- Programmable order
- 32KB internal SRAM, single cycle access at system speed
- External 128MB DDR2 SDRAM, 256MB nandflash, 4MB data flash, 64KB serial EEPROM, 128B one wire EEPROM
- Support WinCE and Linux
- High bandwidth multi port DDR2 controller
- 32bit external bus interface supporting 4 bank and 8 bank DDR2/LPDDR, SDR/LPSDR, static memories
- Shut down controller with four 32bit battery backup registers
- Clock generator and power management controller
