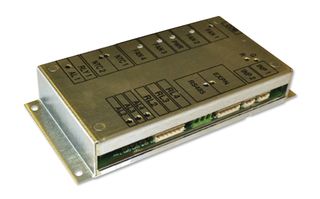

The TMSB00000-01 is a flexible and fully configurable Thermal Management System (TMS) Controller that can be used with EC/DC four wire speed controlled fans. The fan can be individually speed controlled against one of the two temperature sensor inputs. The controller has four Solid state relays (SSRs) that can be individually configured to give an alarm output against speed or temperature.
Works on any DC supply voltage between 12 and 57V
Fan speed based on temperature profile, independent profile for each fan
Compatibility with both 0 to 10V PWM and open collector PWM four-wire fans
11A Maximum supply for fans running at full speed powered by the controller PCB
2x Thermistor inputs to configure temperature selection to control each fan
2x Switch inputs suitable to control door alarms, test switch, fan boost
4x Relay alarm outputs
Daughter board option for two 230VAC 10A relays
PC Interface for configuration, electrically isolated
