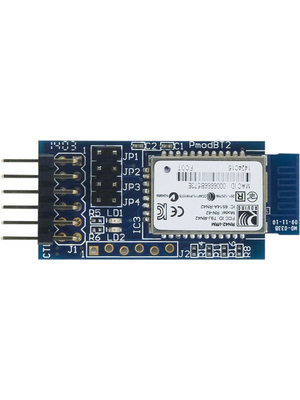

210-214 is a powerful peripheral module employing RN42 to create a fully integrated Bluetooth interface. The RN42 is a small form factor, low power, Class 2 Bluetooth radio for designers who want to add wireless capability to their products. The RN42 supports multiple interface protocols, is simple to design in, and is fully certified, making it a complete embedded Bluetooth solution. The PmodBT2 uses a standard 12 pin connection and communicates via UART. There is a secondary SPI header on the board for updating the RN42 firmware if needed.
- Bluetooth 2.1/2.0/1.2/1.1 Compatible
- Simple UART Interface
- A wide range of modes including Slave mode, Master mode, Trigger master etc
- Small form factor of 1.5inch x 0.8inch
