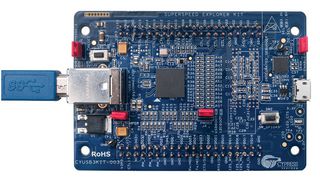

The CYUSB3KIT-003 FX3 SuperSpeed explorer kit is an easy to use and inexpensive development platform enabling developers to add USB 3.0 device functionality to any system. The FX3 SuperSpeed explorer kit is built to evaluate and develop solutions with the CYUSB301x family of EZ-USB FX3 USB 3.0 peripheral controllers. The EZ-USB FX3 device is powered by a fully accessible ARM9 core with 512KB of RAM. The FX3 device has a fully configurable, General Programmable Interface (GPIF II) that can interface with any processor, ASIC, image sensor or FPGA. The SuperSpeed explorer kit combines hardware, software and documentation that enable customers to evaluate the FX3 device.
USB 3.0 offers the SuperSpeed signalling rate of 5 gigabits per second
Powered from USB 3.0 connector
FX3 clocking mechanism using onboard crystal
User pushbutton, user LED, reset circuit and GPIF II connector
Supports I2S, I2C, SPI, UART and JTAG serial interfaces
Integrated debugger
EZ-USB FX3 SDK allows step through debugging in the Eclipse IDE tool
