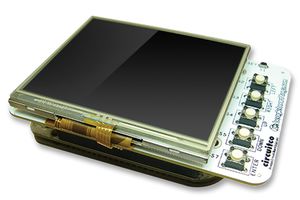

BB-BONE-LCD3-01 is a BeagleBone LCD3 Cape that provides a portable LCD solution with touch screen capability for BeagleBone boards. The 3.5inch TFT LCD screen, attached to the topside of the board, can display up to a resolution of 320 x 240 and is a 4 wire resistive touch screen. The board is equipped with seven switches located at finger friendly positions. These switches include power, reset, and five user switches, which are mapped to different GPIO signals. The backside of the cape is where a BeagleBone can be mounted.
- Power 3.3V/5V via BeagleBone header
- Elpa S035Q01 display model
- Power LED, User LED
- One 46 position male headers
- One 20 position male header
- Four layer board
- EEPROM Support
