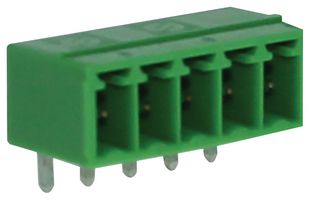

The CTB932HD/5 from Camdenboss is a 5 pole, horizontal PCB mount male pluggable rising clamp terminal block with 3.5mm pin spacing. This professional rising clamp terminal block is suitable for wire size ranging from 26AWG to 16AWG.
Rated voltage of 200V and rated current of 10A
Dimension is 17.5mm x 9.2mm x 7mm (L x W x H)
Polyamide 66 (PA66) moulded material in green colour housing
Closed header, polarised moulding and guided pin alignment
Tinned phosphor bronze terminal
Nickel copper flash brass rising clamp
Tin plated M2 steel captive screw with 0.3Nm torque
