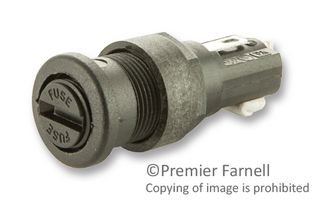

The FX0455 is a 16A/250V panel mount Cartridge Fuse Holder with polyester body, nylon cap, glass filled nylon nut, brass/silver-plated contacts, solder lug termination, D-type fixing style and screw cap/screwdriver release fuse carrier. This fuse holder features protection category PC2 with integral protection against electric shock.
- Low profile fixing
- 2.5W Maximum power dissipation (at 23°C)
- >102MR at 500VDC Insulation resistance
- 7kV at 50Hz AC Breakdown
- <10mR Contact resistance
- -20 to 85°C Operating temperature range
- UL94V-0 Flammability rating
