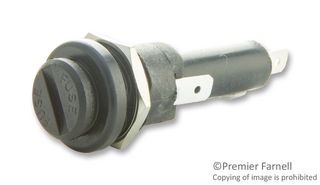

The FX0416S is a 16A/250V panel mount Cartridge Fuse Holder with black glass filled nylon body, brass/silver-plated contacts, nylon cap, polyester sleeve, solder lug termination and screw cap/screwdriver release fuse carrier. This fuse holder features protection category PC2 with integral protection against electric shock.
- 4W Maximum power dissipation (at 23°C)
- >10?MR at 500VDC Insulation resistance
- 4kV at 50Hz AC Breakdown
- <5mR Contact resistance
- -20 to 85°C Operating temperature range
- UL94V-0 Flammability rating
