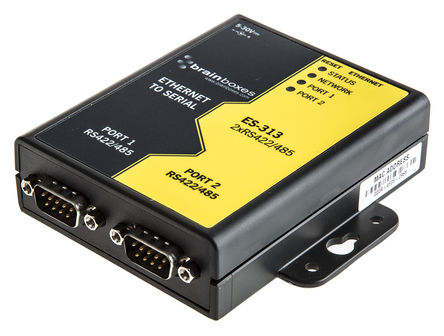

ES-313 -

制造商：

BRAINBOXES BRAINBOXES

制造商产品编号：

ES-313

仓库库存编号：

1799854

技术数据表：

(EN)

Data transfer rates up to 1,000,000 baud, coupled with 1Mbit/s line drivers deliver uncompromising performance. RS485 - 1 twisted pair - half duplex configuration with autogating provides trouble free data transmission due to automatic control of data direction. A web interface allows secure configuration and control of the serial ports over a local network or the internet using any browser. For Windows our in-house designed (32 bit and 64 bit) driver gives you local COM ports, retaining existing software applications and allowing you to connect across your network to remote devices just as if they were attached locally. Serial Port Tunnelling (individually configurable) allows serial cable replacement over any distance, no software required. You can access the device via TCP/IP sockets from any networked device like an Android tablet, PC or phone. On Windows OS TCP/IP sockets are handled by the Winsock API, this will differ on other OSs.

• 2 Port RS-422/485
• Ethernet to Serial Device Server
• Data rate from 110 to 921,600 baud
• User friendly interface, simple to use, powerful in operation
• Web configuration and RFC2217 compliant interface for non-Windows users
• IP-30 rated enclosure
• LED status indication
• Optional DIN rail mounting kit
• Serial Port Tunnelling allows serial cable replacement over any distance
