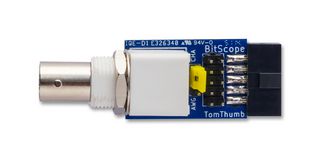

The MP02A is a BNC Port Adapter for BitScope Micro. It allows the use of industry standard oscilloscope probes. It also supports simultaneous use of the logic inputs and connection to the waveform and clock generator outputs. The adapter allows 1:1, 10:1, 100:1 and other standard attenuating oscilloscope probes to be used as well as current, differential or any other BNC terminated sensor designed for use with 1MR/20pF oscilloscope inputs. It includes 6 logic inputs and switchable waveform and clock generator outputs.
- 2 Comparator channels (via analogue inputs)
- 100kR/5pF Digital input impedance
- IDC-10 Device connection (micro port)
