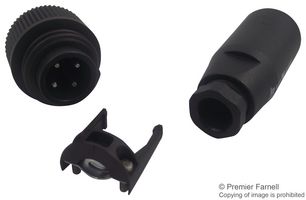

The 99-4221-00-04 from Binder is a circular cable plug power connector with 3 + PE pin contacts. This connector has strain relief, screw interlocking and screw termination. This power connector is primarily used in mechanical engineering applications.
Connector overmoulded on PVC cable
Wire gauge size from 0.5mm2 to 2.5mm2 (20AWG to 14AWG)
Cable outlet diameter from 6mm to 9.5mm
IP67 degree of protection
Temperature range from -40°C to 100°C
Rated voltage of 600V
Rated current of 16A at 40°C (12A according to UL rating)
