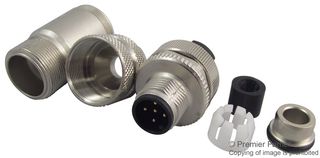

The 99-0487-12-08 is a 8-contact 60V/2A male Circular Connector with gold-plated brass contacts, PA contact body and housing. The 713 series plug with metal threaded locking ring, screw locking system, screwing termination, cable mounting style. It accepts 20AWG (0.5mm2) wire, 6 to 8mm cable outlet.
- 800V Rated impulse voltage
- <=3mR Volume resistivity
- >100 mating cycles Mechanical operation
- IP67 Protection rating
