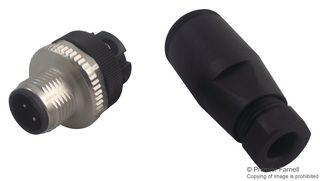

The 99-0429-14-04 from Binder is a circular cable plug sensor connector with 4 pin contacts. It has M12 x 1 screw interlock and screw termination. This compact design sensor connector ensures rational and economic system wiring. This flexibly configured connector is suitable for wide range of requirements in the field of automation technology.
Wire gauge size of 0.75mm2 (18AWG)
Cable outlet diameter from 4mm to 6mm
IP67 degree of protection
Temperature range from -40°C to 85°C
Rated voltage of 250V
Rated current of 4A at 40°C
Brass (CuZn) contacts with CuSnZn (optaloy) plating
