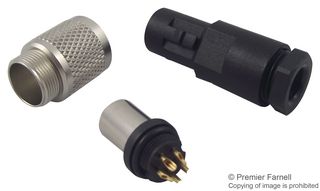

The 99 0413 00 05 from Binder is a subminiature circular cable plug connector with 5 pin contacts. This connector is easy to assemble and has M9 screw locking facility.
Cable outlet diameter of 3.5mm to 5mm
Solder termination
Wire gauge size is 0.25mm2 (24AWG)
IP67 degree of protection
Temperature range from -40°C to 85°C
Rated voltage of 125V
Rated current of 3A at 40°C
Brass (CuZn) contacts with gold (Au) plating
UL94 V-0 rated polybutylene terephthalate (PBT) contact body
