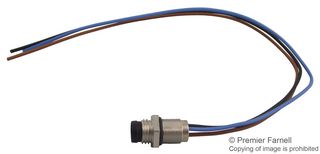

The 09-3403-00-03 is a 3-contact 60V/4A unshielded straight subminiature male Circular Connector with gold-plated brass contacts, PA (UL94 HB) contact body and brass nickel-plated housing. The 718 series receptacle with wire leads, M8 screw locking system, prewired termination, front mounting style. It accepts 24AWG (0.25mm2) wire. The 718 series single-ended cordsets are an over-moulded version of 768 series M8 field-attachable connectors. It is suitable for use with small sensors and actuators.
