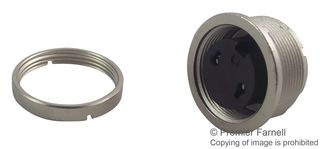

The 09 0304 00 02 is a 2-contact 250V/7A shielded straight miniature female Circular Connector with silver-plated bronze contacts, PBT (UL94V-0) contact body, nickel-plated zinc die-cast housing. The 680 series receptacle with M16 screw locking system, solder termination for easy shield or ground connection, front-mounted. It accepts 20AWG (0.75mm2) wire. It provides excellent EMI shielding. It has integral bend protection sleeve.
