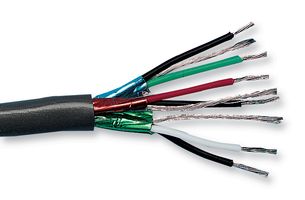

The 8778 is a 6-pair CM-rated Multi-conductor Cable with 22AWG stranded (7x30) tinned copper conductor, polypropylene insulation, twisted pairs individually shielded with Beldfoil? aluminium foil-polyester tape (100% coverage) and overall chrome PVC jacket. Belden multi-conductor cable deliver low voltage analog data and signal transmission within enclosures from controllers and I/O's to devices such as temperature and pressure sensors, relays, valves, meters, thermocouples, solenoids, actuators, contactors, push buttons and alarms.
- CPR: Not Yet Qualified
- 50R Nominal characteristic impedance
- 0.18μH/ft Nominal inductance
- 30pF/ft Conductor to shield nominal capacitance
- 55pF/ft Conductor to other conductor and shield nominal capacitance
- 66% Nominal velocity of propagation
- 15R/1000ft at 20°C Nominal conductor DC resistance
- UL1685 Flame tested
