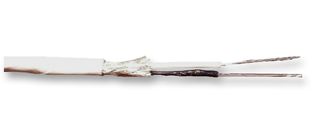

The 83317E 009100 is a 100ft 2-conductor Shielded Cable with 26AWG stranded (7 x 34) silver-plated copper conductors, cabled and colour-coded, extruded TFE PTFE insulation, silver-plated copper braid shield (85% coverage) and white TFE PTFE tape-wrapped jacket. Belden multi-conductor cable deliver low voltage analog data and signal transmission within enclosures from controllers and I/O's to devices such as temperature and pressure sensors, relays, valves, meters, thermocouples, solenoids, actuators, contactors, push buttons and alarms.
- CPR: Not Yet Qualified
- 20.8pF/ft Conductor to conductor nominal capacitance
- 35.5% Conductor to other conductor and shield nominal capacitance
- 39R/1000ft at 20°C Nominal conductor DC resistance
- 7R/1000ft at 20°C Nominal outer shield DC resistance
