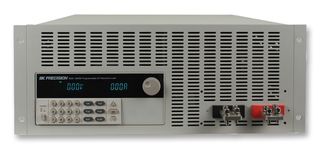

The BK8520 is a Programmable DC Electronic Loads can be used for testing and evaluating a variety of DC power sources. Their wide operating ranges of up to 500 V and 240A, flexible operating modes and excellent measurement accuracy make the 8500 series well suited for characterizing DC Power supplies, DC-DC Converters, batteries, fuel cells and solar cells. The loads can operate in CC, CV, CR or CP mode while voltage/current or resistance/power values are measured and displayed in real time. Load terminals are isolated and floating. Extensive protection, including over temperature, over power, over voltage, over current and reverse polarity will help protect your valuable prototype.
- Operating Voltage: 0.1 - 120 V (2400 W)
- High resolution 0.1mA/1mV (range dependent)
- Rated Current: 240 A
- Bright, easy to read display (VFD technology)
- CV/CC/CW/CR operation
- Over-Current/Over-Voltage/Over-Power/Over-Temperature Protected
- RS 232 Interface cable and software included
- Optional USB interface available (order IT-E132)
- Thermostat controlled internal fan
- Battery test capability
- Create complex test sequences without the need of an external PC
