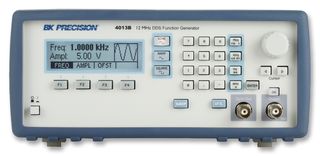

Model BK4013B is versatile DDS (direct digital synthesis) sweep function generators with high signal precision and stability. This instruments generate sine and square waveforms up to 7 MHz or 12 MHz, including triangle/ramp waveforms up to 1 MHz. Both models provide variable output voltages from 0 to 10 Vpp into 50 ohms or up to 20 Vpp into open circuit. A continuously variable DC offset allows the output to be injected directly into circuits at the correct bias level.
Sine and square waveforms up to 12 MHz
Bright easy-to-read display
Linear and logarithmic sweep
Variable DC offset
Adjustable duty cycle
Store and recall up to 9 instrument settings
Output On/Off button
Overvoltage, overcurrent, and short circuit protection on main output
