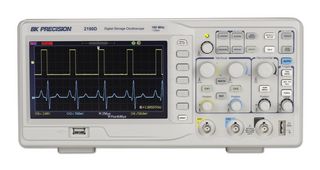

The BK2190D is a 100MHz 2-channel Digital Storage Oscilloscope combines performance and value all in one portable solution. With advanced triggering capabilities, long waveform memory up to 40000 points and extensive features such as pass/fail limit testing, digital filtering, waveform recorder and 32 automatic measurements, this oscilloscope offers powerful tools in a small affordable package. Versatile triggering capabilities including pulse width, line-selectable video, slope and alternating trigger. Advanced tools include digital filter with adjustable limits, pass/fail testing and waveform recorder mode. PC software that lets you remotely control the digital storage oscilloscope and capture, save and analyse waveform data. Front panel USB host port for saving and recalling waveform setups, data and screen shots from the oscilloscope on to an USB flash drive. USBTMC compliant USB device port supporting SCPI commands for remote PC control.
- Large 7" widescreen colour display
- FFT plus four additional math functions
- 12 Different language user interfaces and context sensitive help
- Special EDU mode allows educators to disable auto set button, measure menu and cursors menu
