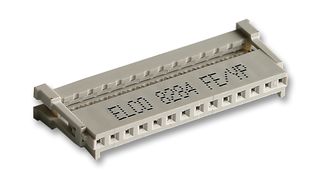

The 208284014000030 is a 14-contact 1-row 350V/1.5A IDC Socket with tin-plated phosphor bronze contacts. This 8284 series socket with UL94VO rated grey polyester moulding. The socket has 2-piece insulator design with IDC contacts suitable for termination to 26/28AWG stranded ribbon cable or dip solder terminations.
1000MR Insulation resistance
1050VDC/AC Peak dielectric withstanding voltage
20mR Maximum contact resistance
10 cycles Standard tin plating mechanical endurance
