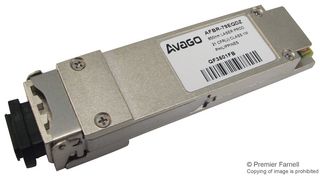

The AFBR-79EQDZ is a 4-channel pluggable parallel Fiber-optic QSFP+ Transceiver for 40Gigabit Ethernet (40GbE) applications. This transceiver is a high performance module for short-range multi-lane data communication and interconnects applications. It integrates four data lanes in each direction with 40Gbps aggregate bandwidth. Each lane can operate at 10.3125Gbps up to 100m using OM3 fiber or 150m using OM4 fiber. This module supports 4 x 10G InfiniBand (IB) quadruple data rate (40G-IB-QDR) application and is backward compatible to the 4 x 5G IB dual data rate (20G-IBDDR) and 4 x 2.5G IB single data rate (10G-IB-SDR) applications as well. This module is designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 38 contact edge type connector. The optical interface uses a 8 or 12 fiber MTP? (MPO) connector.
Hot pluggable transceiver for servicing and ease of installation
