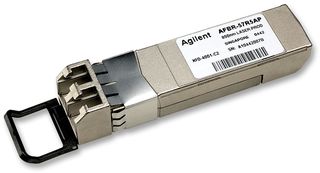

The AFBR-57R5APZ is a 4/2/1Gbaud MMF Fibre Optic Transceiver supports high-speed serial links over multimode optical fibre at signalling rates up to 4.25Gbps. Compliant with Small Form Pluggable (SFP) Multi Source Agreement (MSA) mechanical and electrical specifications for LC duplex transceivers, ANSI Fibre Channel FC-PI, FC-PI-2 and compatible with IEEE 802.3 for gigabit applications.
- 850nm Vertical cavity surface emitting laser (VCSEL) source technology
- Diagnostic features per SFF-8472 Diagnostic Monitoring Interface for Optical Transceivers
- Wide temperature and supply voltage operation (-10 to 85°C) (3.3V ±10%)
- LC Duplex optical connector interface conforming to ANSI TIA/EIA604-10 (FOCIS 10)
- 850nm Vertical cavity surface emitting laser (VCSEL) source technology
- IEC 60825-1 class 1/CDRH class 1 laser eye safe
- Compatible with gigabit Ethernet
