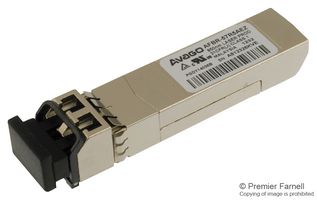

The AFBR-57R5AEZ is a Fiber Optic Transceiver supports high-speed serial links over multimode optical fiber at signaling rates up to 4.25Gbps. Compliant with Small Form Pluggable (SFP) Multi Source Agreement (MSA) mechanical and electrical specifications for LC duplex transceivers, ANSI Fiber Channel FC-PI, FC-PI-2 and compatible with IEEE 802.3 for gigabit applications. The part is electrically interoperable with SFP conformant devices. Real time monitoring of transmitted optical power, received optical power, laser bias current, temperature and supply voltage.
- Diagnostic features per SFF-8472 Diagnostic Monitoring Interface for Optical Transceivers
- Wide temperature and supply voltage operation (-10 to 85°C) (3.3V ±10%)
- LC Duplex optical connector interface conforming to ANSI TIA/EIA604-10 (FOCIS 10)
- 850nm Vertical cavity surface emitting laser (VCSEL) source technology
- IEC 60825-1 class 1/CDRH class 1 laser eye safe
- Enhanced EMI performance for high port density applications
- Compatible with gigabit Ethernet
