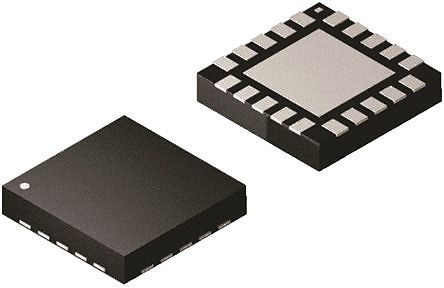

The ATTINY1634-MN is a low-power 8-bit CMOS Microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATtiny1634 achieves throughputs approaching 1MIPS per MHz allowing the system designer to optimize power consumption versus processing speed. The AVR core combines a rich instruction set with 32 general purpose working registers. All 32 registers are directly connected to the arithmetic logic unit (ALU), allowing two independent registers to be accessed in a single instruction, executed in one clock cycle. The resulting architecture is compact and code efficient while achieving throughputs up to ten times faster than conventional CISC microcontrollers. ATtiny1634 provides 16kB flash memory, 256B EEPROM, 1kB SRAM, 18 general purpose I/O lines.
Advanced RISC architecture
125 Powerful instructions most single clock cycle execution
32 x 8 General purpose working registers
Fully static operation
Dedicated hardware and QTouch? library support for capacitive touch sensing
One 8-bit and one 16-bit timer/counter with two PWM channels, each
12-channel 10-bit ADC
Programmable ultra low power watchdog timer
On-chip analog comparator
Two full duplex USARTs with start frame detection
Universal serial interface
Slave I2C serial interface
DebugWIRE on-chip debug system
In-system programmable via SPI port
Internal and external interrupt sources
Low power idle, ADC noise reduction, standby and power-down modes
Enhanced power-on reset circuit
Programmable brown-out detection circuit with supply voltage sampling
8MHz Calibrated oscillator with temperature calibration option
