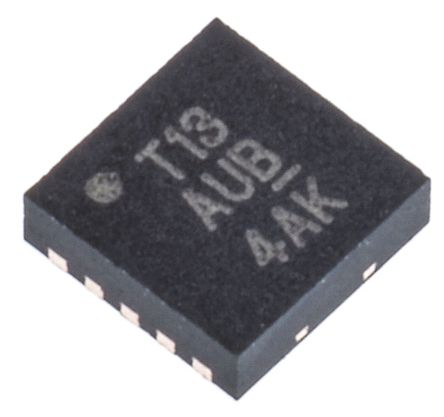

The ATTINY13A-MMU is a 8-bit apicoPower AVR RISC-based Microcontroller features 1kB of ISP flash, 64B EEPROM, 64B SRAM, 32-byte register file and 4-channel 10-bit A/D converter. The device achieves up to 20 MIPS throughput at 20MHz at 1.8 to 5.5V operation. By executing powerful instructions in a single clock cycle, the ATtiny13A achieves throughputs approaching 1 MIPS per MHz allowing you to optimize power consumption versus processing speed. The AVR core combines a rich instruction set with 32 general purpose working registers. All 32 registers are directly connected to the Arithmetic Logic Unit (ALU), allowing two independent registers to be accessed in one single instruction executed in one clock cycle. The resulting architecture is more code efficient while achieving throughputs up to ten times faster than conventional CISC microcontrollers.
Advanced RISC architecture - 120 powerful instructions, most single clock cycle execution
High endurance, non-volatile memory segments
Peripheral features - On-chip analogue comparator
debugWIRE on-chip debug system
In-System Programmable via SPI port
External and internal interrupt sources
Low power idle, ADC noise reduction and power-down modes
Enhanced power-on reset circuit
Programmable brown-out detection circuit with software disable function
