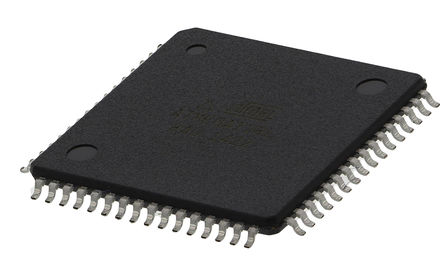

The ATMEGA128L-8AU is a 8-bit low-power CMOS Microcontroller Unit based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATmega128 achieves throughputs approaching 1MIPS per MHz allowing the system designed to optimize power consumption versus processing speed. The core combines a rich instruction set with 32 general purpose working registers. All the 32 registers are directly connected to the Arithmetic Logic Unit (ALU), allowing two independent registers to be accessed in one single instruction executed in one clock cycle. The resulting architecture is more code efficient while achieving throughputs up to ten times faster than conventional CISC microcontrollers.
Advanced RISC architecture
131 Powerful instructions
Fully static operation
Up to 20MIPS throughput at 20MHz
On-chip 2-cycle multiplier
High endurance non-volatile memory segments
Optional boot code section with independent lock bits
