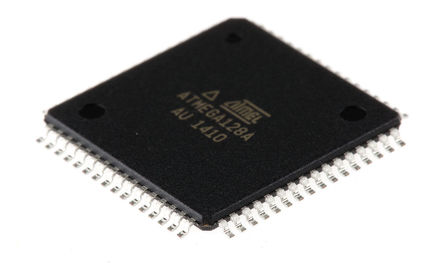

ATMEGA128A-AU -

制造商：

MICROCHIP MICROCHIP

制造商产品编号：

ATMEGA128A-AU

仓库库存编号：

1773397

技术数据表：

(EN)

The ATMEGA128A-AU is a high-performance, low-power 8-bit AVR RISC-based Microcontroller combines 128kb flash memory with read-while-write capabilities, 4kb EEPROM, 53 general purpose I/O lines, 32 general purpose working registers, real time counter, four flexible timer/counters with compare modes and PWM, two USARTs , a byte oriented Two-wire serial interface, an 8-channel/10-bit A/D converter with optional differential input stage with programmable gain, programmable watchdog timer with internal oscillator, SPI serial port, a JTAG (IEEE 1149.1 compliant) test interface for accessing the on-chip debugging and programming and six software selectable power saving modes. The device operates between 2.7 to 5.5V. By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching 1 MIPS per MHz, balancing power consumption and processing speed.

• High-performance, Low-power AVR? 8-Bit Microcontroller
• Advanced RISC Architecture
• High Endurance Non-volatile Memory Segments
• JTAG (IEEE Standard 1149.1 Compliant) Interface
• Power-on Reset and Programmable Brown-out Detection
• Internal Calibrated RC Oscillator
• External and Internal Interrupt Sources
• Idle, ADC Noise Reduction, Power-save, Power-down, Standby and Extended Standby Sleep Modes
• Software Selectable Clock Frequency
• ATmega103 Compatibility Mode Selected by a Fuse

• Global Pull-up Disable
• 0 to 16MHz Speed Grade
