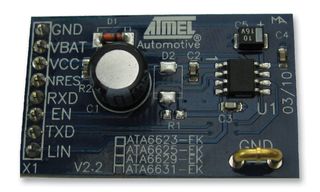

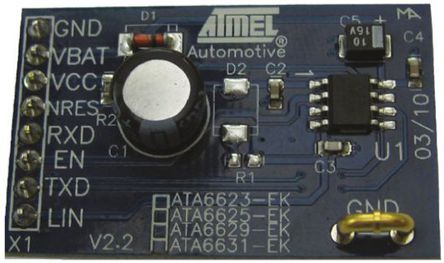

The ATA6629-EK is an LIN bus transceiver with integrated voltage regulator. The development board for the Atmel ATA6629 is designed to give users a quick start using these ICs and prototyping and testing new LIN designs. The ATA6629 is a fully integrated LIN transceiver in compliance with LIN specification 2.0, 2.1 and SAEJ2602-2 with a 3.3V/85mA low drop voltage regulator. The Atmel ATA6629 are the successor ICs of the Atmel ATA6623/ATA6625 featuring enhanced EMC performance, reduced current consumption in silent mode, extended TXD time-out time and improved wake-up behaviour, resulting in a very low sleep mode and silent mode current consumption even in the case of a floating bus or a short circuit between the bus line and GND. The ICs are designed to handle the low speed data communication in vehicles, e.g. in convenience electronics. Improved slope control at the LIN driver ensures secure data communication up to 20Kbaud.
- Supply voltage up to 40V
- Typically 10μA supply current during sleep mode
- Typically 35μA supply current in silent mode
- Linear low-drop voltage regulator, 85mA current capability with 3.3V
- VCC undervoltage detection with reset open drain output NRES (4ms reset time)
- Voltage regulator is short-circuit and over-temperature protected
- LIN physical layer according to LIN 2.0, 2.1 and SAEJ2602-2
- Wake-up capability via LIN bus (90μs dominant)
- Fulfills the OEM "Hardware Requirements for LIN in automotive applications Rev.1.1
- Interference and damage protection according to ISO7637
