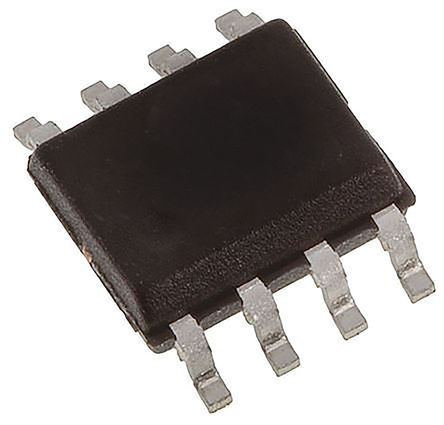

AT93C66B-SSHM-B -

制造商：

MICROCHIP MICROCHIP

制造商产品编号：

AT93C66B-SSHM-B

仓库库存编号：

2345630

技术数据表：

(EN)

The AT93C66B-SSHM-B is a MICROWIRE-compatible 4kB 3-wire serial Electrically Erasable Programmable Read-Only Memory (EEPROM) organized as 512 words of 16-bit each (when the ORG pin is connected to VCC) and 256 words of 8-bit each (when the ORG pin is tied to ground). The device is optimized for use in many industrial and commercial applications where low-power and low-voltage operations are essential. The AT93C66B is enabled through the chip select pin (CS) and accessed via a 3-wire serial interface consisting of data input (DI), data output (DO) and shift clock (SK). Upon receiving a read instruction at DI, the address is decoded and the data is clocked out serially on the DO pin. The write cycle is completely self-timed and no separate erase cycle is required before write. The write cycle is only enabled when the part is in the erase/write enable state. When CS is brought high following the initiation of a write cycle, the DO pin outputs the ready/busy status of the part.

• Low-voltage operation
• User-selectable internal organization
• Sequential read operation
• 2MHz Clock rate (5V)
• Self-timed write cycle (5ms maximum)
• High reliability
• Endurance - 1000000 write cycles
• Data retention - 100 years
