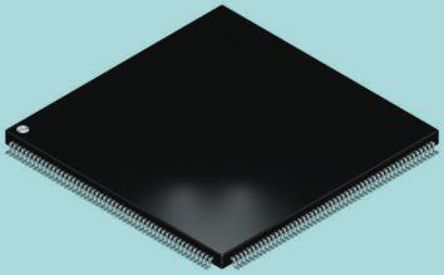

The AT91SAM9260B-QU is a SMART 32-bit Embedded Microcontroller based on the integration of an ARM926EJ-S processor with fast ROM and RAM memories and a wide range of peripherals. The SAM9260 is architectured on a 6-layer matrix, allowing a maximum internal bandwidth of six 32-bit buses. It also features an External Bus Interface capable of interfacing with a wide range of memory devices.
180MHz ARM926EJ-S ARM Thumb processor
ITU-R BT. 601/656 Image sensor interface (ISI)
USB device and USB host with dedicated on-chip transceiver
10/100Mbps Ethernet MAC controller (EMAC)
One high speed memory card host
Two master/slave serial peripheral interfaces (SPI)
Two 3-channel 32-bit timers/counters (TC)
One synchronous serial controller (SSC)
One two-wire interface (TWI)
Four universal synchronous/asynchronous receiver/transmitters (USARTs)
Two UARTs
4-channel 10-bit ADC
90MHz six 32-bit Layer AHB bus matrix
22 Peripheral DMA channels
Boot from NAND flash, dataflash or serial dataflash
Reset controller (RSTC) with on-chip power-on reset
