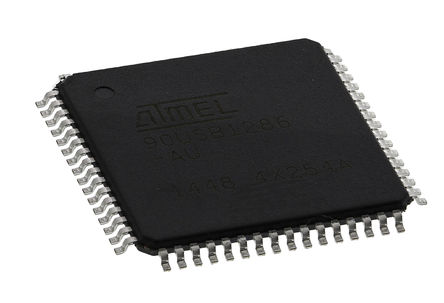

AT90USB1286-AU -

制造商：

MICROCHIP MICROCHIP

制造商产品编号：

AT90USB1286-AU

仓库库存编号：

1748495

技术数据表：

(EN)

The AT90USB1286-AU is a high-performance, low-power 8-bit AVR RISC-based Microcontroller combines 128kb ISP flash memory with read-while-write capabilities, 4kb EEPROM, 48 general purpose I/O lines, 32 general purpose working registers, real time counter, 4 flexible timer/counters with compare modes and PWM, USART, byte oriented 2-wire serial interface, USB 2.0 low-speed and full-speed device, an 8-channel 10-bit A/D converter with optional differential input stage with programmable gain, programmable watchdog timer with internal oscillator, SPI serial port, JTAG (IEEE 1149.1 compliant) interface for on-chip debugging and six software selectable power saving modes. By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching 1 MIPS per MHz, balancing power consumption and processor speed.

• High-performance, Low-power AVR? 8-bit Microcontroller
• Advanced RISC Architecture
• Non-volatile Program and Data Memories
• JTAG (IEEE Standard 1149.1 Compliant) Interface
• USB 2.0 Full-speed/Low-speed Device and On-the-go Module
• USB Full-speed/Low Speed Device Module with Interrupt on Transfer Completion
• USB OTG Reduced Host
• Power-on Reset and Programmable Brown-out Detection
• Internal Calibrated Oscillator
• External and Internal Interrupt Sources

• Idle, ADC Noise Reduction, Power-save, Power-down, Standby and Extended Stand Sleep Modes
• 8MHz at 2.7V and 16MHz at 4.5V (Industrial Range) Maximum Frequency
