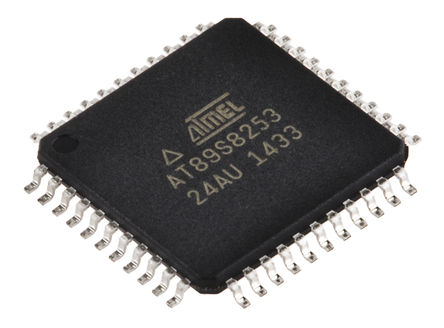

AT89S8253-24AU -

制造商：

MICROCHIP MICROCHIP

制造商产品编号：

AT89S8253-24AU

仓库库存编号：

1095744

技术数据表：

(EN)

The AT89S8253-24AU is a 8-bit low-power high-performance CMOS Microcontroller with 12kB of In-System Programmable (ISP) flash program memory and 2kB of EEPROM data memory. The device is manufactured using Atmel's high-density non-volatile memory technology and is compatible with the industry-standard MCS-51 instruction set and pinout. The on-chip downloadable flash allows the program memory to be reprogrammed in-system through an SPI serial interface or by a conventional non-volatile memory programmer. By combining a versatile 8-bit CPU with downloadable flash on a monolithic chip, the Atmel AT89S8253 is a powerful microcontroller which provides a highly-flexible and cost-effective solution to many embedded control applications.

• Compatible with MCS?-51 products
• 12kB of In-System Programmable (ISP) flash program memory
• 2kB EEPROM data memory
• 64-byte User signature array
• Three-level program memory lock
• 256 x 8-bit Internal RAM
• 32 Programmable I/O lines
• Three 16-bit timers/counters
• Nine interrupt sources
• Enhanced UART serial port with framing error detection and automatic address recognition

• Enhanced SPI (double write/read buffered) serial interface
• Low-power idle and power-down modes
• Interrupt recovery from power-down mode
• Programmable watchdog timer
• Dual data pointer
• Power-off flag
• Flexible ISP programming (byte and page mode)
• Four-level enhanced interrupt controller
• Programmable and fuse-able x2 clock option
• Internal power-on reset
