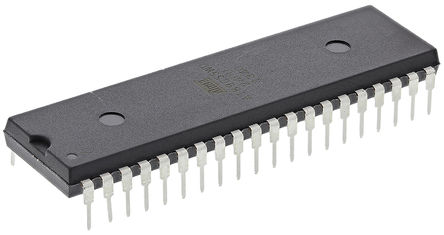

AT89C55WD-24PU -

制造商：

MICROCHIP MICROCHIP

制造商产品编号：

AT89C55WD-24PU

仓库库存编号：

1095732

技术数据表：

(EN)

The AT89C55WD-24PU is a 8-bit low-power High-performance CMOS Microcontroller with 20kB of flash programmable read only memory and 256 bytes of RAM. The device is manufactured using Atmel's high-density non-volatile memory technology and is compatible with the industry standard 80C51 and 80C52 instruction set and pinout. The on-chip Flash allows the program memory to be user programmed by a conventional non-volatile memory programmer. By combining a versatile 8-bit CPU with flash on a monolithic chip, the Atmel AT89C55WD is a powerful microcomputer which provides a highly flexible and cost effective solution to many embedded control applications. The AT89C55WD provides the following standard features 20kB of Flash, 256 bytes of RAM, 32 I/O lines, three 16-bit timer/counters, a six-vector, two-level interrupt architecture, a full-duplex serial port, on-chip oscillator and clock circuitry.

• Compatible with MCS?-51 products
• 20kB Reprogrammable flash memory
• 10,000 Write/erase cycles endurance
• Three-level program memory lock
• 256 x 8-bit Internal RAM
• 32 Programmable I/O lines
• Three 16-bit timers/counters
• Eight interrupt sources
• Programmable serial channel
• Low-power idle and power-down modes

• Interrupt recovery from power-down mode
• Hardware watchdog timer
• Dual data pointer
• Power-off flag
