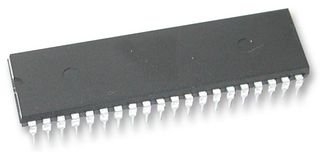

AT27C256R-45PU -

制造商：

MICROCHIP MICROCHIP

制造商产品编号：

AT27C256R-45PU

仓库库存编号：

2345637

技术数据表：

(EN)

The AT27C256R-45PU is a 262144-bit low-power high-performance one-time programmable Read-only Memory (OTP EPROM) IC organized as 32k by 8-bit. It requires only one 5V power supply in normal read mode operation. Any byte can be accessed in less than 45ns, eliminating the need for speed reducing WAIT states on high-performance microprocessor systems. The Atmel scaled CMOS technology provides low active power consumption and fast programming. Power consumption is typically only 8mA in active mode and less than 10μA in standby mode. All devices feature two-line control (CE, OE) to give designers the flexibility to prevent bus contention. With 32kB storage capability, allows firmware to be stored reliably and to be accessed by the system without the delays of mass storage media. The AT27C256R has additional features to ensure high quality and efficient production use. The rapid programming algorithm reduces the time required to program the part and guarantees reliable programming.

• 45ns Fast read access time
• Low-power CMOS operation - 100μA max standby
• 5V ±10% Supply
• High-reliability CMOS technology - 2000V ESD protection
• Rapid programming algorithm - 100μs/byte (typical)
• CMOS and TTL compatible inputs and outputs
• Integrated product identification code
• Industrial and automotive temperature ranges
