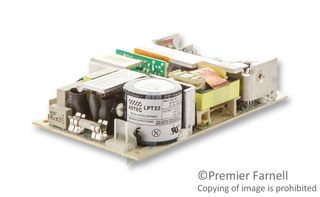

The LPT22 is a 5V ±12V/25W 3-output open PCB Power Supply Unit with remote sense on main output. LPT25-series power supply unit features low output ripple, less than 1U high, 110KHz switching frequency. Short-circuit protection on all outputs. Case overload protected at 110% to 145% above peak rating. 5.7 to 6.7VDC on the main output overvoltage protection. Compensates for 0.5V lead drop min. Will operate without remote sense connected. Reverse connection protected. 0.3A minimum load.
Universal input
Built-in EMI filter
70% Typical at full load efficiency
<0.5mA at 50/60Hz, 264VAC Input safety ground leakage current
