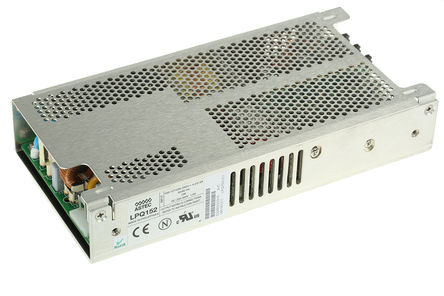

The LPQ152-C is a 5V ±12V 25V/75W 4-output Power Supply Unit with cover, remote sense on main output. LPQ142-series features low output ripple, single wire current sharing, short-circuit protection on all outputs. Case overload protected at 110 to 145% above peak rating. 5.7 to 6.7VDC on main output overvoltage protection. TTL logic signal goes high 50 to 150ms after 5V output. It goes low at least 3ms before loss of regulation. Requires an external TTL high signal to inhibit outputs. Compensates for 0.5V lead drop min. Will operate without remote sense connected. Reverse connection protected.
Auto ranging input
Built-in EMI filter
Adjustable floating 4th output
Power fail
0.5mA at 50/60Hz, 264VAC input Safety ground leakage current
