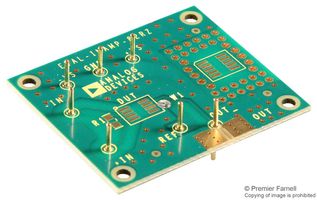

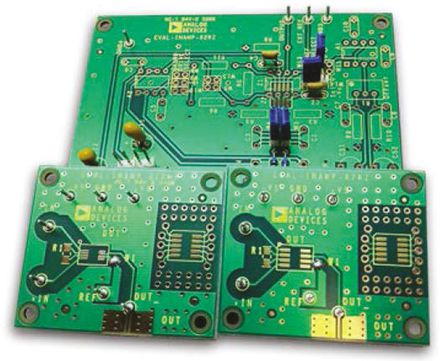

The EVAL-INAMP-82RZ is an evaluation boards for the AD620 series and the AD8220 series instrumentation amplifiers. The EVAL-INAMP-82RZ offers users the option of evaluating the AD8221 and AD8228 instrumentation amplifiers individually or with other products in common applications. As with the AD620 to AD623 board, this board is shipped with an assortment of surface mount packages. The evaluation board is arranged so that users can easily adjust the gain resistor and reference jumper. The board offers an SMA/SMB outline at the output. Users can add their own connector to interface the evaluation board with complementary tools, such as an analog to digital converter (ADC) evaluation board, available from Analog Devices. The board permits easy wiring of active filters, line drives, and ADCs, right on the board, thus extending its use as a development tool.
- 3 generic, easy to use PC boards
- Support several related in amp products
- Simple gain setting
- Decoupled supply lines
- Test the AD8220, AD8221, and AD8228
- Package variations available for EVAL-INAMP-82RZ board is SOIC
- Solder jumper and SMA/SMB outline
