EVAL-CN0303-SDPZ -

制造商：

ANALOG DEVICES ANALOG DEVICES

制造商产品编号：

EVAL-CN0303-SDPZ

仓库库存编号：

2361285

技术数据表：

(EN)

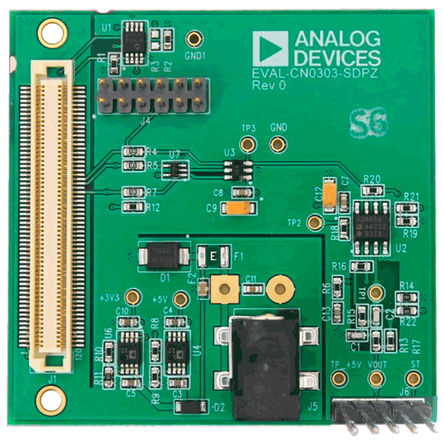

The EVAL-CN0303-SDPZ is a circuit evaluation board offers a high linearity, low noise, wide bandwidth vibration sensing solution. It is ideal for applications requiring a large dynamic range (±70g, ±250g or ±500g) and a flat frequency response from dc to 22KHz. This circuit evaluation board makes use of ADXL001 single axis accelerometer, AD8606 dual package op amp and AD7476 single channel, 1MSPS, 12bit ADC. The circuit provides a low power solution suitable for bearing analysis, engine monitoring and shock detection. The fifth generation iMEMs process enables the ADXL001 accelerometer to provide dynamic range that extends from ±70g to ±500g in combination with 22KHz of bandwidth. The AD8606 is a precision low noise dual op amp used to create an analog bi quad filter that flattens the output frequency response of the accelerometer. The ADXL001 output voltage is converted into a digital word by the AD7476 low power single channel 12bit SAR ADC.

• High g MEMS based vibration analyzer
• Flat response to 22KHz
• 70g, 250g, and 500g range
