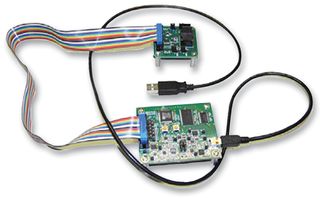

The EVAL-ADXL345Z-S is an satellite board for ADXL345 inertial sensor datalogger. The iMEMS ADXL345 development board is an easy to use tool that facilitates prototyping by providing a platform that can be duplicated in the final application. Additionally, the development board can be configured as a datalogger and can be used to gather data for refining algorithms, tuning thresholds, and generally familiarizing oneself with accelerometer data. Two AAA batteries power the development board, and thus it integrates seamlessly into portable applications. Communications and processing are done by an ARM7-based ADuC7024 microcontroller, and the interface provided is fully reprogrammable. Moreover, all ADuC7024 pins are broken out into headers to facilitate design of compatible expansion boards.
- Ultralow power ADXL345 accelerometer inertial sensor development board
- Datalogs onto microSD card
- Fully programmable via serial interface, firmware examples provided
- 2 layer printed circuit board (PCB), 1.20 inches × 2.30 inches form factor
- Two AAA battery power supply
- 4pin UART header to connect to an Rs232 interface cable
- Reset/download push buttons
- Power indicator/general purpose LEDs
- Access to microcontroller I/O's from the external header
- Demonstration firmware logs 100Hz acceleration data
