EVAL-ADXL345Z-M -

制造商：

ANALOG DEVICES ANALOG DEVICES

制造商产品编号：

EVAL-ADXL345Z-M

仓库库存编号：

1853937

技术数据表：

(EN)

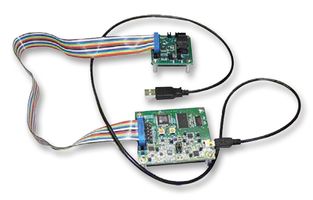

The EVAL-ADXL345Z-M is an iMEMS ADXL345 Inertial Sensor evaluation board. The iMEMS ADXL345 inertial sensor evaluation system consists of the inertial sensor evaluation board (ISEB), or main board, and a satellite board for any Analog Devices inertial sensor product. The ISEB connects directly to a PC via its USB, where the USB connection provides both power and communications to the board. The ISEB is a universal main board and is intended to be used with various satellites of Analog Devices inertial sensors, including analog and digital accelerometers, as well as gyroscopes. The ISEB connects directly to a PC via its USB, where the USB connection provides both power and communications to the board. The ISEB then connects to the satellite board through a ribbon cable.

• Ultralow power ADXL345 accelerometer
• Universal inertial sensor motherboard
• DUT specific satellite board for evaluation
• Standard USB cable for power and communication
• PC based graphical user interface
• User reprogrammable firmware capability
