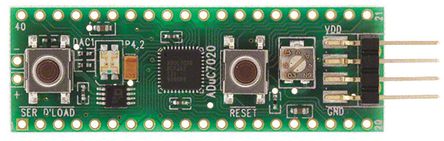

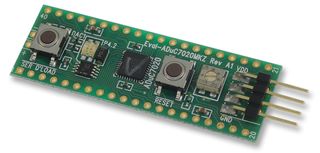

The EVAL-ADUC7020MKZ is an Minikit development systems for evaluation of the ADuC7020 fully integrated, 1MSPS, 12bit data acquisition systems incorporating high performance multichannel ADCs, The microcontroller core is an ARM7TDMI 16bit/32bit MCUs, flash/EE memory on a single chip RISC machine, which offers up to 41MIPS peak performance.. The minikit facilitates performance evaluation of the device with the minimum external components. The ADC consists of up to 12 single ended inputs. An additional four inputs are available but are multiplexed with the four DAC output pins. The ADC can operate in single ended or differential input mode. The ADC input voltage is 0 V to Vref. A low drift band gap reference, temperature sensor, and voltage comparator complete the ADC peripheral set. The devices operate from an on chip oscillator and a PLL generating an internal high frequency clock of 41.78MHz (UCLK).
- 2 layer PCB (4"X5" form factor)
- 9V power supply regulated to 3.3V on board
- 4 pin UART header to connect to RS232 interface cable
- 20 pin standard JTAG connector to connect to ULINK emulator
- 32.768KHz watch crystal to drive the PLL clock
- ADR291 2.5V external reference chip
- Reset/Download/IRQ0 push buttons
- Power indicator/general purpose LEDs
- Access to all ADC inputs and DAC outputs from external header
