EVAL-AD7400AEDZ -

制造商：

ANALOG DEVICES ANALOG DEVICES

制造商产品编号：

EVAL-AD7400AEDZ

仓库库存编号：

2077568

技术数据表：

(EN)

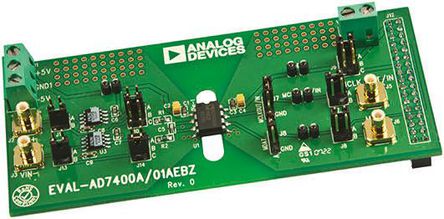

The EVAL-AD7400AEDZ is an evaluation board for the AD7400A isolated sigma delta modulator. This board operates in standalone mode or in conjunction with the converter evaluation and development board EVAL-CED1Z. When operated with the converter evaluation and development board, software is provided enabling the user to perform detailed analysis of the ADC's performance. The AD7400A is a second order, sigma delta(Σ-Δ) modulators that convert an analog input signal into a high speed, 1 bit data stream with on chip digital isolation based on the Analog Devices iCoupler technology. The AD7400A accept a differential input signal of ±200mV (±320mV full scale). The analog input is continuously sampled by the analog modulator, eliminating the need for external sample and-hold circuitry.

• Full featured evaluation board for the AD7400A and EVAL-CED1Z compatible
• It has standalone capability and various linking options
• It provides PC software for control and data analysis when using the EVAL-CED1Z
• It has 10MHz clock rate
• It has second order modulator
• It provides 16bits no missing codes
• It has ±2 LSB INL typical at 16bits
• It has 1.5μV/°C typical offset drift
