EVAL-AD5791SDZ -

制造商：

ANALOG DEVICES ANALOG DEVICES

制造商产品编号：

EVAL-AD5791SDZ

仓库库存编号：

2072467

技术数据表：

(EN)

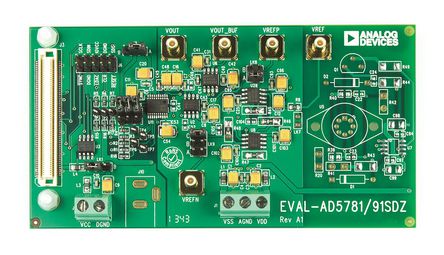

The EVAL-AD5791SDZ is an evaluation board for a 20bit, Serial input, Voltage output DAC. The EVAL-AD5791 is a full featured evaluation board, designed to allow the user to easily evaluate all features of the AD5791 voltage output, 20bit DAC. The AD5791 pins are accessible at on-board connectors for external connection. The board can be controlled by two means, via the on-board connector (J6) or via the system development platform connector (J3). The SDP board allows the evaluation board to be controlled through the USB port of a windows XP (SP2 or later) or vista (32bit) based PC using the AD5791 evaluation software. The AD5791 is a high precision, 20bit digital to analog converter (DAC), designed to meet the requirements of precision control applications. The output range of the AD5791 is configured by two reference voltage inputs. The device is specified to operate with a dual power supply of up to 33V.

• Full featured evaluation board for the AD5791
• It has link options
• PC control in conjunction with AD's system development platform
• supports PC software for control
• It gives 1ppm Accuracy
• Wide power supply range up to ±16.5V
• Low 7.5nV/√Hz noise spectral density
• Low 0.05ppm/°C temperature drift
