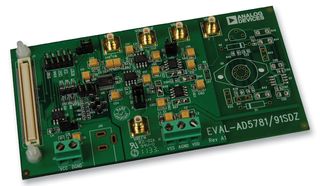

The EVAL-AD5781SDZ is an is a full featured evaluation board designed to allow the user to easily evaluate all features of AD5781 voltage output, 18bit DAC. The AD5781 is a high precision DAC designed to meet the requirements of precision control applications. The output range of the AD5781 is configured by two reference voltage inputs. The device is specified to operate with a dual power supply of up to 33V. The AD5781 pins are accessible at onboard connectors for external connection. The board can be controlled by two means, via the onboard connector (J6) or via the system development platform connector (J3). The SDP board allows the evaluation board to be controlled through the USB port of a windows XP (SP2 or later) or vista (32bit) based PC using the AD5781 evaluation software.
- 7.5nV/√Hz Noise Spectral Density
- 0.05LSB Long Term Linearity Stability
- 1.4nVsec glitch impulse
- Wide Power Supply range up to ±16.5V
- 35MHz Schmitt triggered digital interface
- 1.8V compatible digital interface
