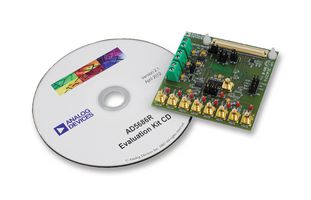

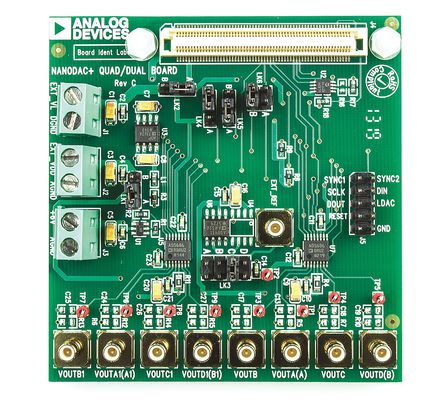

The EVAL-AD5686RSDZ is an evaluation board for AD5686R, 16/12bit, quad channel voltage output DAC. The EVAL-AD5686RSDZ supports both the AD5686R and AD5686. The evaluation board is designed to help customers quickly prototype new AD568x(R) circuits and reduce design time. The AD568x(R) operates from a single 2.7V to 5.5V supply. The AD5686R and AD5684R incorporate an internal 2.5V reference to give an output voltage span of 2.5V or 5V. The AD5686 and AD5684 require an external reference. The evaluation board interfaces to the USB port of a PC via the SDP board. Software is supplied with the evaluation board to allow the user to program the AD568x(R).This evaluation board requires the EVAL-SDP-CB1Z board(SDP-B controller board).
- Full featured evaluation board for the AD5686R, AD5686, AD5684R, and AD5684
- On-board references
- Various link options
- PC control in conjunction with analog devices, system demonstration platform (SDP)
