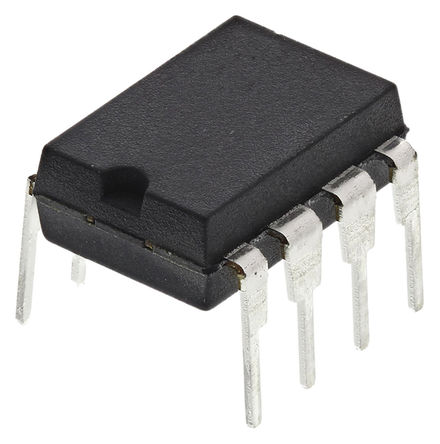

AMP03GPZ -

制造商：

ANALOG DEVICES ANALOG DEVICES

制造商产品编号：

AMP03GPZ

仓库库存编号：

9604081

技术数据表：

(EN)

The AMP03GPZ is a monolithic unity-gain high speed Differential Amplifier incorporates a matched thin film resistor network, the AMP03 features stable operation over temperature without requiring expensive external matched components. The AMP03 is a basic analog building block for differential amplifier and instrumentation applications. The differential amplifier topology of the AMP03 both amplifies the difference between two signals and provides extremely high rejection of the common-mode input voltage. By providing common-mode rejection (CMR) of 100dB typical, the AMP03 solves common problems encountered in instrumentation design. As an example, the AMP03 is ideal for performing either addition or subtraction of two signals without using expensive externally matched precision resistors. The large common-mode rejection is made possible by matching the internal resistors to better than 0.002% and maintaining a thermally symmetric layout.

• Continuous output short-circuit duration
• 100dB Typical high CMRR
• 0.001% Maximum low nonlinearity
• 0.001% Typical low distortion
• 1μs Typical fast settling (0.01%)
