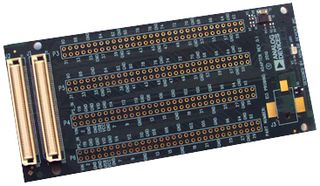

The ADZS-BRKOUT-EX3 is an system demonstration platform (SDP) breakout board. The SDP breakout board can be used in conjunction with the SDP board and daughter boards designed on the SDP system. The breakout board allows signals travelling between the SDP board and compatible daughter boards to be monitored, through the insertion of the breakout board between the SDP board and the daughter board. The SDP is used as part of the evaluation system for many ADI components. The SDP breakout board exposes each of the 120 pins of the SDP board's connector allowing users to monitor signals between the controlling SDP board and the attached daughter evaluation board or circuit from the lab (CftL) board. The SDP breakout board can also be used as a proof of concept tool through the insertion of pin headers in the exposed relevant signal through hole locations.
- It provides 4 x 120 pin small foot print connectors
- It has EEPROM ID
- It provides 240 through hole probe points
