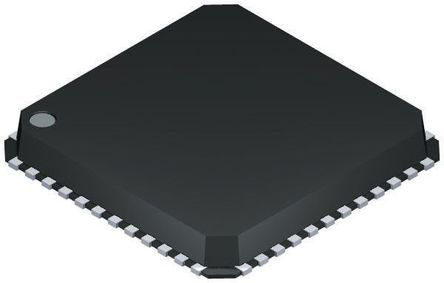

The ADUCM361BCPZ128 is a fully integrated, 3.9 kSPS 32-bit Precision Analog Microcontroller incorporates dual high performance, multichannel sigma-delta (Σ-Δ) (Σ-Δ) ADCs, an ARM Cortex-M3 processor and flash/EE memory on a single chip. The ADuCM361 contain an on-chip 32kHz oscillator and an internal 16MHz high frequency oscillator. The high frequency oscillator is routed through a programmable clock divider from which the operating frequency of the processor core clock is generated. The maximum core clock speed is 16MHz, this speed is not limited by operating voltage or temperature. The microcontroller core is a low power ARM Cortex-M3 processor, a 32-bit RISC machine that offers up to 20MIPS peak performance. The Cortex-M3 processor incorporates a flexible, 11-channel DMA controller that supports all wired communication peripherals (SPI, UART and I2C). Also integrated on chip are 128kB of nonvolatile flash/EE memory and 8kB of SRAM.
- Single 24-bit ADCs
- Programmable ADC output rate (3.5Hz to 3.906kHz)
- Simultaneous 50Hz/60Hz noise rejection
- Flexible input mux for input channel selection to both ADCs
- Programmable sensor excitation current sources
- On-chip precision voltage reference
- Single 12-bit voltage output DAC
- Serial wire download and debug
- Internal watch crystal for wake-up timer
- 16MHz Oscillator with 8-way programmable divider
- In-circuit debug/download via serial wire and UART
- Overall system current consumption of 1.0mA with core
- 16-bit PWM controller
- 19-pin Multifunction GPIO port
- 2 General-purpose timers
- Wake-up timer/watchdog timer
- Multichannel DMA and interrupt controller
自动化与过程控制, 工业, 医用, 传感与仪器, 测试与测量
